Description

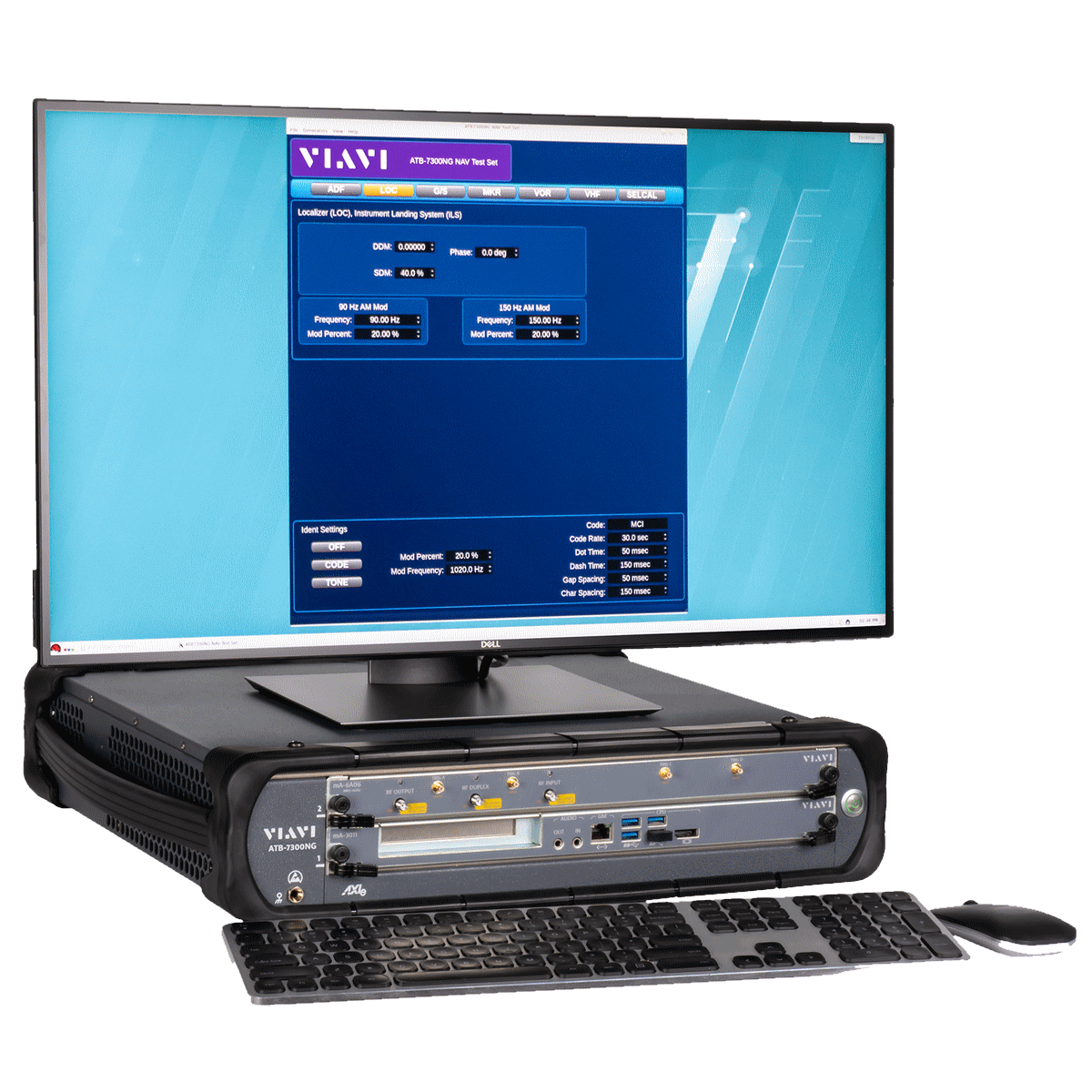

Model ATB-7300NG

The ATB-7300NG Navigation Test Set is based on the new VIAVI AXIe Avionics Test Bench (ATB) platform. The ATB platform is a powerful leading edge design tailored for end-users from OEMs
to repair shops and can be used for all stages of the avionics lifecycle: Product development; Design verification & validation; Certification; Manufacturing; Return-to-service; and Service/
calibration.

Standard Features

VHF Generator – Provides control of modulation frequency, modulation depth (up to 3 sources), SELCAL tones, frequency and tone sequences
ILS/LOC Generator – Provides control of 90 Hz and 150 Hz tone frequencies, modulation depths, left/right DDM and IDENT settings, including Morse code
ILS Glide Slope Generator – Provides control of 90 Hz and 150 Hz tone frequencies, modulation depths, up/down DDM
VOR Generator – Provides control of 30 Hz Var/Ref and 9960 Hz tone frequencies, modulation depths, 9960 Hz deviation, VOR bearing, to/from and IDENT settings
ADF Generator – Provides control of modulation frequency, modulation depth and IDENT settings Marker/Beacon Generator – Provides selection of Outer, Middle and Inner marker beacon tones and control of tone frequencies, modulation depth and IDENT settings

User Interface

• Basic Graphical User Interface (GUI) allows access to test features
• The ATB offers an Ethernet remote control interface
• Commands set compatibility offered for the following legacy products: NAV-2000R, ATB-7300, Collins 4795-6A
