Description

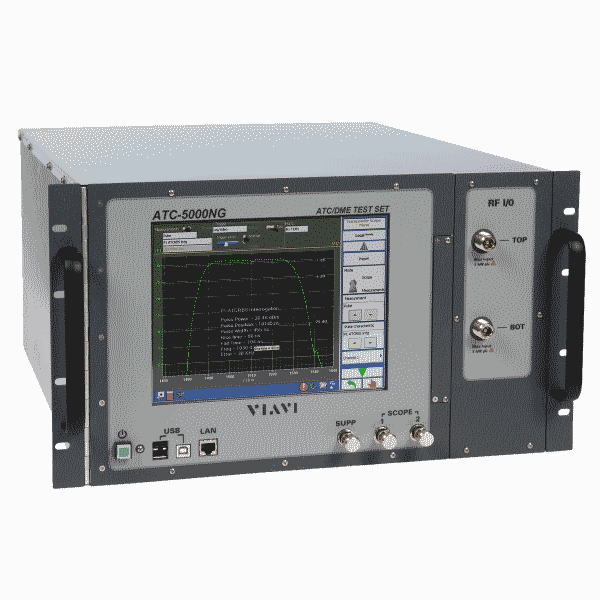

The VIAVI ATC-5000NG is an RF signal generator/receiver for testing Mode 3/A, C and S transponders. The ATC-5000NG was designed with modern software defined radio technology and is the replacement product for the commercial functionality of the SDX-2000, ATC-1400A and S-1403DL. The ATC-5000NG is capable of performing most MOPS tests for DO-181E, DO-260, DO-260A, DO-260B, and DO-282B and is the ideal test equipment for engineering development, certification, manufacturing and service.
The ATC-5000NG tests the following:
• Transponders (Mode S/ADS-B Out)
• ADS-B In receivers
• UAT receivers
• 1090MHz DF18 Emitters (surface vehicles)
• ADS-B In Ground Station Receivers
• ADS-R, TIS-B Ground Station Transmitters
• DMEs
Features:
- Target generation – independently configure up to 600 ADS-B, TIS-B, or ADS-R target types (32 dynamic and 568 static); ATCNGOPT03 Multireceiver option required
- Software-driven design allows for field updates to add new features, capabilities or modifications
- ADS-B squitter decode and logging for ADS-B Out testing (DO-260, DO-260A and DO-260B data parsing)
- DO-260B MOPS preconfigured tests available (Option ATCNGOPT06)
- Generates ATCRBS/Mode S interrogations
- Multi-receiver test capability (ATCNGOPT03)
- UAT TX/RX capability (ATCNGOPT02)
- Pulse and frequency measurement
- Remote controlled via GPIB or Ethernet
- Two independent transmitters and receivers
- TX/RX data logging capability
- Legacy command set option
- Full diversity testing capability
- Data parsing in engineering units
We recommend additionally:
- ATC-5000NG (NP:138156) Transponder Test Set
- ATCNGOPT01 (NP:139311) DME Option
- ATCNGOPT02 (NP:138157) UAT 978MHZ Option
- ATCNGOPT03 (NP:138159) Multi-receiver Option
- ATCNGOPT04 (NP:138158) SDX-2000 Command Set Compatibility Option
- ATCNGOPT05 (NP:138223) ATC-1400A /S-1403DL Command Set Compatibility Option
- ATCNGOPT06 (NP:139310) DO-260B MOPS Test Option (requires Multi-Receiver Option)
Download:
Product Brochure ATC-5000NG ATC/DME Test Set and ADS-B target Generator
Product Brochure ATC-5000NG option 2 UAT 978 MHz
Product Brochure ATC-5000NG Option 3 Multi-Receiver
Product Brochure ATC-5000NG Option 6 DO-260B MOPS Test
